Residential Fridge

After fighting with our Norcold 2118 since almost day one with this rig, we finally had had enough and made the decision to get rid of it and replace it with a residential fridge.

We probably spent the better part of 48 hours over several weeks, measuring, researching, visiting dealers to look at different models, remeasuring and more researching before we finally decided on a particular replacement. We early on ruled out the model (Samsung RF18) that Grand Design installs in their -R models as the reviews were not very good, we felt we could get a bit bigger unit in and I really wanted an ice maker and water dispenser. The model we finally settled on is a 22 cuft 3 door, bottom freezer model made by LG; specifically the LFXC22526S.

When it came time to install it, I was fortunate to have a local RV tech who has done a number of fridge swapouts help, which made things go much easier.

We started by removing the doors on the old Norcold and disconnecting everything in behind. All told the removal only took about a half hour and getting it around the island and out the door was quite easy. We had one other person help for the heavy lifting which worked out well; we didn't get in each others way too much.

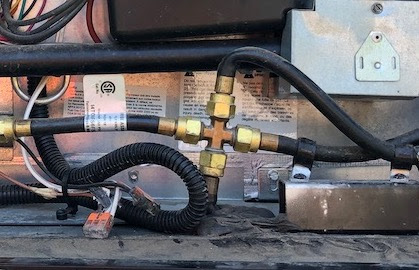

After the old one was out, we started to get things ready for the new fridge. We had to cap off the propane line and reposition things a bit as GD had installed the line to the range with a bit of a kink in it.


We also had to pull a water line in. For that, I tapped into the main water line behind the Nautilus panel and ran a 10' stainless flex line out via the same path as the rest of the slide connections. I put a shut off valve just under the slide floor and then ran another 5' stainless flex line up to the fridge.

Before putting the new fridge in, I also lined the outside walls of the enclosure with Reflectix to add a bit of extra insulation.

Getting the new fridge in was a bit tighter as it was slightly bigger. After removing the doors, the biggest challenge was getting it around the island, but that only took a bit of pushing and shoving.  Once lined up with the opening it slid right in on its rollers. We did have to remove the trim piece above though as the new fridge turned out to be about 3/4" taller than the old one. Apparently the measurements didn't take the height of the rollers into account. We bent a couple of angle brackets and screwed them into the floor in front of the rollers to stop it from moving out. We also added 4 angle brackets at the back top and bottom to stop it from tipping.


The final install test came when we pulled the slide back in. I knew it was going to be close but didn't realize quite how close! With the slide all the way in, the top of the freezer drawer handle stops about 1/16" below the bottom of the island counter top. I added a piece of fuzzy velcro under the counter to stop any chance of it rubbing.



Now, one thing we did have to do is slide the fridge all the way back into the opening. We couldn't leave the recommended 2" behind without more extensive mods to the island. However, the cooling air exhaust from the fridge is right behind the bottom vent on the side of the trailer. I plan to seal it off and simply let the fridge vent through to the outside. I have placed a remote thermometer in this space and will keep an eye on the temperatures. If I have to make adjustments here I will. I have also sealed off the upper vent.

I still have some clean up here, especially with the gas line to the range and oven. When we did the install we couldn't get the right fittings to do a clean install so had to cobble together a solution using some extra parts the RV tech had. I also want to clean up the electrical a bit as well.

The new fridge is up and running and easily maintaining 1 to 2 degrees C in the fridge and -19/-20C in the freezer. So far temps in behind only seem to be running a few degrees above ambient. I’m still figuring out power consumption but so far it seems to use about 1.5 KWh/day or when on the inverter, less than 125 Ah off the batteries per day.
If those numbers are correct, our solar plant should have no trouble maintaining our energy levels.
As a comparison, if my math is correct, the old Norcold used approx. 21 KWh/day or approx. 1,450 Ah/day!

Yet to do is to finish the trim above the fridge and I also want to add a piece of trim below so you can’t see the rollers and clamps.

All in all, the install only took about 5 hours start to finish.


Update - February 2021 - About 6 months since the install.

I am happy to say that we are still very happy with our new fridge. It has been maintaining temperatures very well. The only time we had any issue was earlier this month when outside temperatures got down close to -17C or around 0F. I noticed that the freezer temp was rising by quite a bit and the temperature in behind was getting quite low. I used a piece of reflectix to block off the outside vent and immediately the temperatures started to come back to normal.

We have also found that so far the energy consumption figures are if anything, better than advertised. We have been averaging between 30 and 35 kWh per month which should bring us in at about 400 kWh for the year. A fair bit less than the advertised 665 kWh and a hell of lot less than the 7500 kWh that the old Norcold used!

I was also able to clean up the plumbing and wiring in behind a bit so it looks much neater now.



6 comments:

  1. That's Awesome Rob, Very glad it all worked out!

    ReplyDelete
    Replies
    1. Thanks. Haven't had much chance to give it a real workout off-grid yet though. We did one weekend with it and it seemed to use about what we figured for power. I think I will still add a couple more batteries just for that extra margin.

      Delete
    2. Which GD model do you have? We want to do this as well. Thanks

      Delete
    3. We have a 2019 Grand Design Solitude 374TH.

      Delete
  2. Rob I can't believe I'm reading your story as I have been searching for ever to find out how to do this so a big thank you to you. We have a Solitude 310 model and have replaced the 18 Cubic ft Norcold once under warranty and still same cooling problems with hot air not exiting the refer chimney as designed. I installed 5 fans in the rear all the way from bottom to top of the refer chimney as well as 5 fans inside the refrigerator on the fins and it now works, however with cool nights the fans have to be turned off or the interior temp plunges to 25 degrees and if the doors are left open for any length of time then the interior fridge temperature rises to the mid 40's for about 2 or 3 hours and then back down. So our system is high maintenance but workable. We stay at Cross Creek RV Resort in Arcadia Florida for the winters. I must ask one question about wiring. Did you have to add an inverter and add the refrigerator circuit to the invertor to allow refrigerator to keep function while travelling? Thank you again and my wife looks forward to your reply more than me LOL although I really need to do this conversion with the Florida hot days - thank you and as I said I do look forward to your reply

    ReplyDelete
  3. Hi Robert. We had the same basic issues with ours; wild temperature swings, would run non-stop for 24hrs+ after stocking, and even at it's best wouldn't freeze to USFDA recommended temperatures. We mostly boondock and already had a decent solar/battery plant and inverter that pretty much runs our whole trailer so the fridge wasn't a huge addition to support.
    Your needs will be determined by how you use your trailer. If you are on full hookups most of the time and only need to support the fridge while traveling, you can probably get away without doing anything. The fridge will stay cold for quite a while on its own.
    If you boondock or wallydock occasionally for a night or 2, you will need a small (1000W) pure sign inverter and a couple hundred Amp hours (2-4 6V Lead Acid or a pair of 100AH Lithium) worth of batteries to run the fridge. A small generator would also be a handy thing to have as well as decent battery monitor. Any decent RV dealer or mobile tech could get you set up. Hope that helps. -Rob-
